This guide applies to the following models: TM-414, TM-424.
Follow these steps to mount your TimeMoto 400-series time clock (TM-414 & TM-424) to the wall and plug it in.

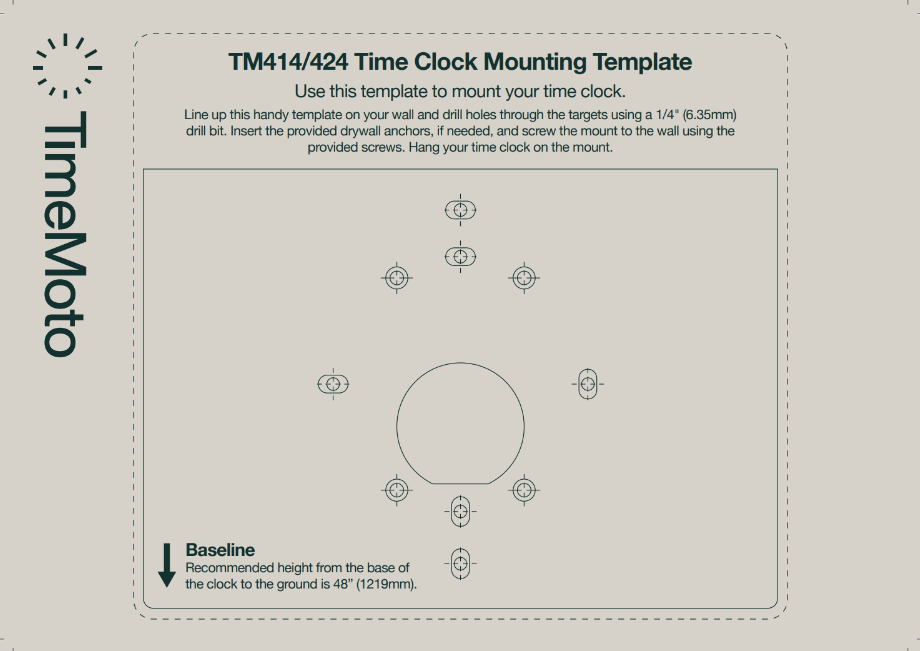

Step 1: Get your TM-414/424 Time Clock Mounting Template
For best results, line up the TM-414/424 Time Clock Mounting Template (included in the box) on your wall and drill holes through the targets using a 1/4" (6.35mm) drill bit.

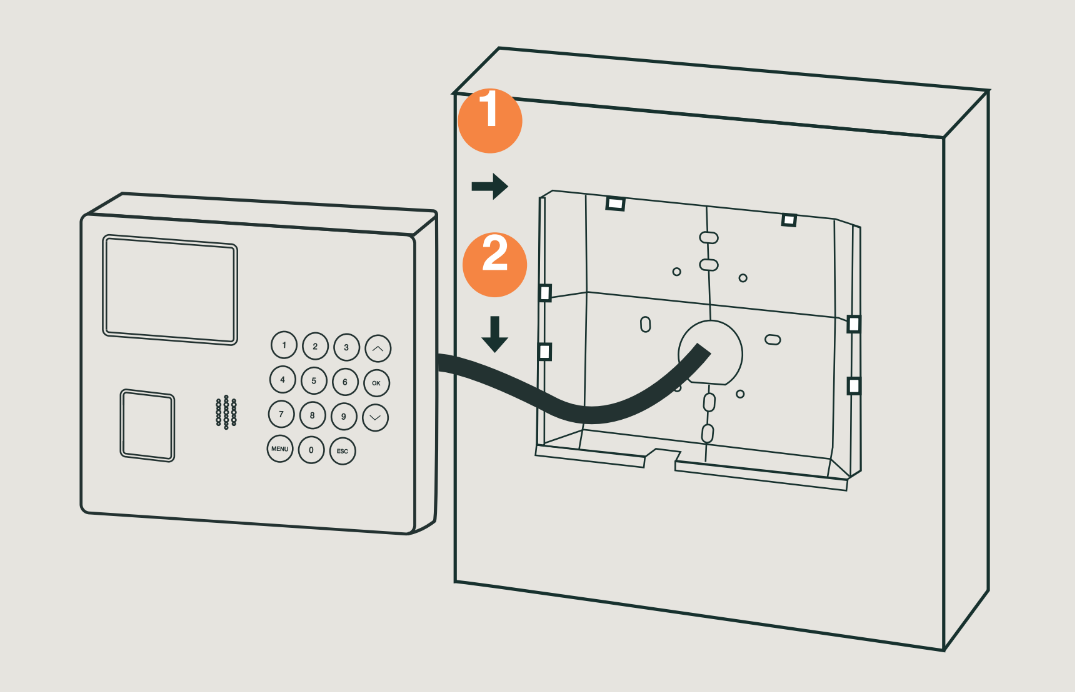

Step 2: Attach the mount to the wall
Insert the provided drywall anchors, if needed, and secure the mount to the wall using the provided screws. Before attaching the mount, remember to route the power/LAN cables through the opening in the back.

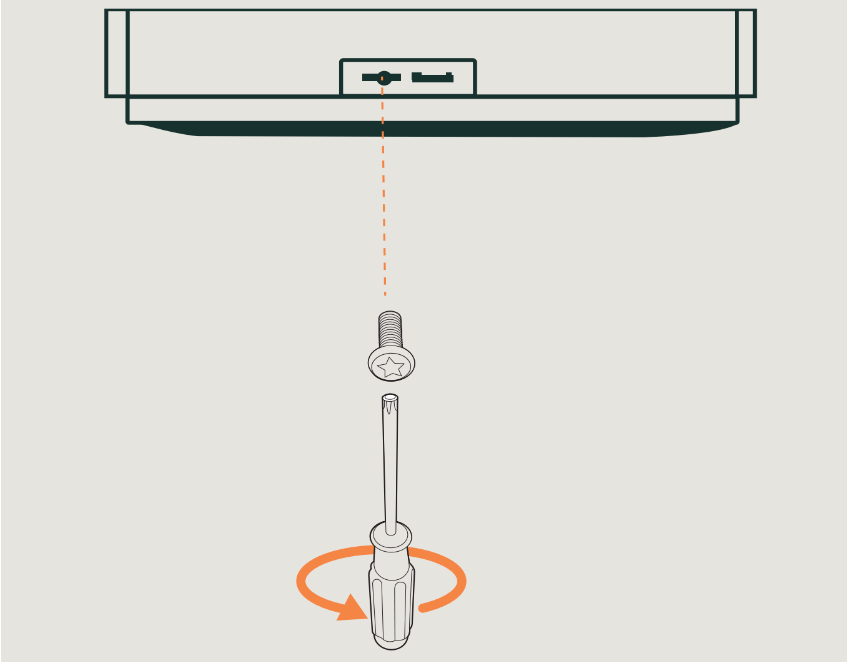

Step 3: Connect and secure the clock
Connect any required cables to the time clock. We recommend connecting the cable to the device while the power adapter is still unplugged from the electrical outlet. Then, hang your time clock on the mount and secure it with the provided screw.

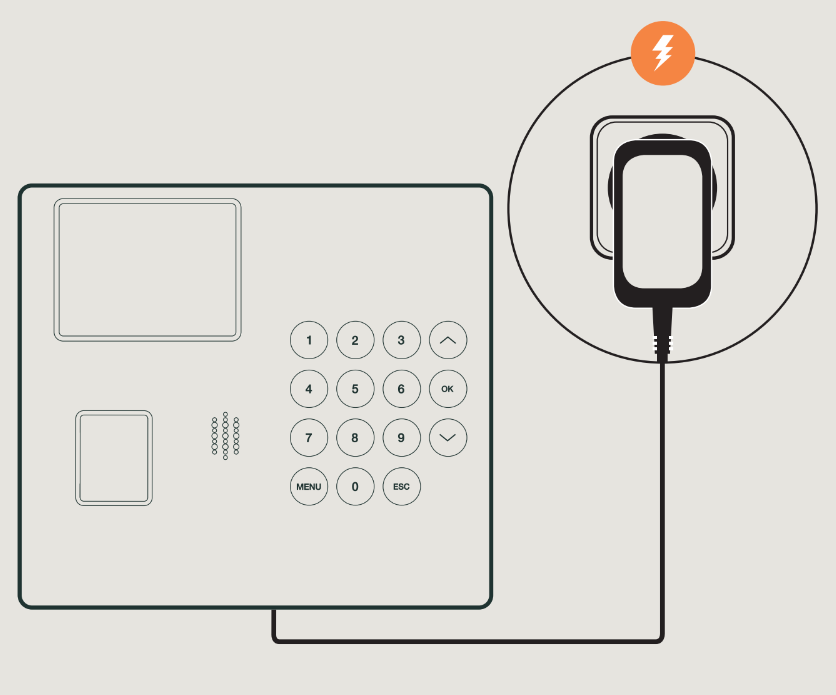

Step 4: Connect your time clock to a power outlet
Finally, connect the power adapter to an electrical outlet.
Step 5: Continue with the Quick Installation.

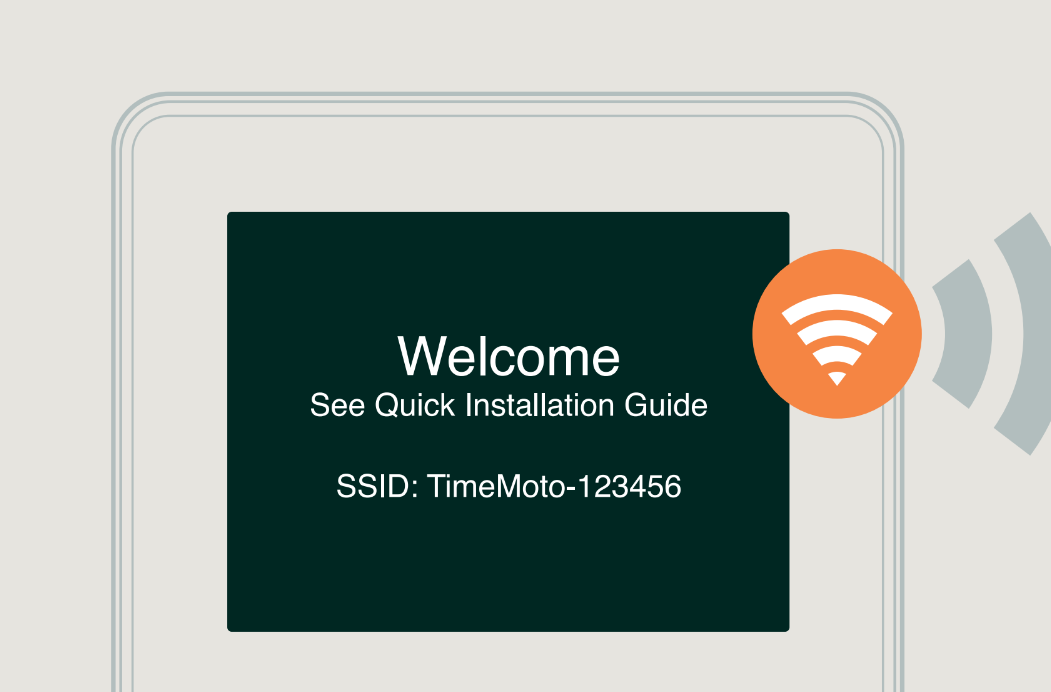

Once plugged in, the welcome screen of the TimeMoto device shows "SSID: TimeMoto-......" followed by a six-digit number. This means you can continue with the Quick Installation Guide.
|
💡 My screen looks different. What should I do? The Welcome Screen of your time clock only appears if the Quick Installation hasn't been completed yet. If you've already completed the Quick Installation before mounting the device, you can skip this step. If you purchased a device that has been used already, please follow this guide. |
